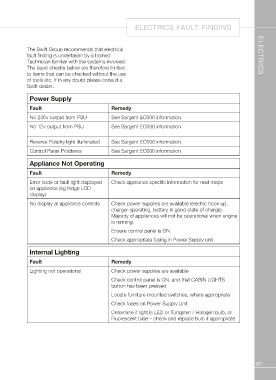

ELECTRICS FAULT FINDING

The Swift Group recommends that electrical ELECTRICS
fault finding is undertaken by a trained
Technician familiar with the systems involved.
The basic checks below are therefore limited
to items that can be checked without the use
of tools etc. If in any doubt please consult a
Swift dealer.

Power Supply Remedy
See Sargent EC600 information
Fault See Sargent EC600 information
No 230v output from PSU
No 12v output from PSU

Reverse Polarity light illuminated See Sargent EC600 information
Control Panel Problems See Sargent EC600 information

Appliance Not Operating Remedy
Check appliance specific information for next steps
Fault
Check power supplies are available (electric hook up,
Error code or fault light displayed charger operating, battery in good state of charge).
on appliance (eg fridge LCD Majority of appliances will not be operational when engine
display) is running.
Ensure control panel is ON.
No display at appliance controls Check appropriate fusing in Power Supply unit

Internal Lighting Remedy

Fault Check power supplies are available
Lighting not operational
Check control panel is ON, and that CABIN LIGHTS
button has been pressed

Locate furniture mounted switches, where appropriate

Check fuses on Power Supply Unit

Determine if light is LED or Tungsten / Halogen bulb, or
Fluorescent tube – check and replace bulb if appropriate

97
