SPARE WHEEL

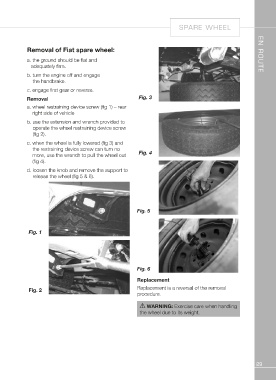

Removal of Fiat spare wheel: EN ROUTE

a.the ground should be flat and Fig. 3
adequately firm. Fig. 4

b. turn the engine off and engage
the handbrake.

c. engage first gear or reverse.

Removal

a. w heel restraining device screw (fig 1) – rear
right side of vehicle

b. u se the extension and wrench provided to
operate the wheel restraining device screw
(fig 2).

c. w hen the wheel is fully lowered (fig 3) and
the restraining device screw can turn no
more, use the wrench to pull the wheel out
(fig 4).

d. loosen the knob and remove the support to
release the wheel (fig 5 & 6).

Fig. 5

Fig. 1

Fig. 2 Fig. 6

Replacement
Replacement is a reversal of the removal
procedure.

! WARNING: Exercise care when handling

the wheel due to its weight.
