EXTRACTOR HOOD
Care of the microwave
1. Turn the oven off before cleaning
2. Keep the inside of the oven clean. When
food spatters or spilled liquids adhere to
oven walls, wipe with a damp cloth.
Mild detergent may be used if the oven gets
very dirty. The use of harsh detergent or
abrasives is not recommended.
3. The outside oven surface should be cleaned
with soap and water, rinsed and dried with
a soft cloth. To prevent damage to the
operating parts inside the oven, water should
not be allowed to seep into the ventilation
openings.
4. If the Control Panel becomes wet, clean with
a soft dry cloth. Do not use harsh detergents
or abrasives on the Control Panel.
5. If steam accumulates inside or around
the outside of the oven door, wipe with
a soft cloth. This may occur when the
microwave oven is operated under high
humidity conditions and in no way indicates
malfunction of the unit.
6. It is occasionally necessary to remove the
glass tray for cleaning. Wash the tray in
warm sudsy water or in a dishwasher.
7. The roller guide and oven cavity floor should Remove the remainder of the lamp using
be cleaned regularly to avoid excessive
noise. Simply wipe the bottom surface of the
oven with mild detergent water or window
cleaner and dry. The roller guide may be
washed in mild sudsy water.
8. T he oven should be cleaned regularly and
any food deposits removed;
9. F ailure to maintain the oven in a clean
condition could lead to deterioration of the
surface that could adversely affect the life
of the appliance and possibly result in a
hazardous situation.

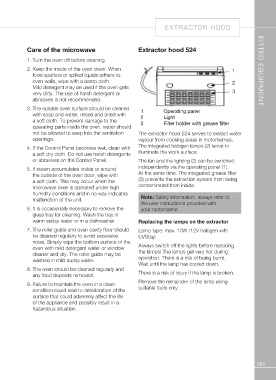

Extractor hood 524 FITTED EQUIPMENT
1
2
3
1 Operating panel
2 Light
3 Filter holder with grease filter
The extractor hood 524 serves to extract water
vapour from cooking areas in motorhomes.
The integrated halogen lamps (2) serve to
illuminate the work surface.
The fan and the lighting (2) can be switched
independently via the operating panel (1).
At the same time. The integrated grease filter
(3) prevents the extraction system from being
contaminated from inside.
Note: Safety information, always refer to
the user instructions provided with
your motorhome.
Replacing the lamps on the extractor
Lamp type: max. 10W /12V halogen with
UVStop
Always switch off the lights before replacing
the lamps! The lamps get very hot during
operation. There is a risk of being burnt.
Wait until the lamp has cooled down.
There is a risk of injury if the lamp is broken.
suitable tools only.
