THETFORD CASSETTE TOILET

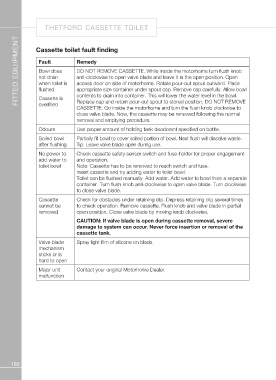

FITTED EQUIPMENT Cassette toilet fault finding

Fault Remedy
Bowl does
not drain DO NOT REMOVE CASSETTE. While inside the motorhome turn flush knob
when toilet is anti-clockwise to open valve blade and leave it in the open position. Open
flushed. access door on side of motorhome. Rotate pour-out spout outward. Place
Cassette is appropriate size container under spout cap. Remove cap carefully. Allow bowl
overfilled contents to drain into container. This will lower the water level in the bowl.
Replace cap and return pour-out spout to stored position. DO NOT REMOVE
Odours CASSETTE. Go inside the motorhome and turn the flush knob clockwise to
Soiled bowl close valve blade. Now, the cassette may be removed following the normal
after flushing removal and emptying procedure.
No power to
add water to Use proper amount of holding tank deodorant specified on bottle.
toilet bowl
Partially fill bowl to cover soiled portion of bowl. Next flush will dissolve waste.
Cassette Tip: Leave valve blade open during use.
cannot be
removed Check cassette safety sensor switch and fuse-holder for proper engagement
and operation.
Valve blade Note: Cassette has to be removed to reach switch and fuse.
mechanism Insert cassette and try adding water to toilet bowl.
sticks or is Toilet can be flushed manually. Add water. Add water to bowl from a separate
hard to open container. Turn flush knob anti-clockwise to open valve blade. Turn clockwise
Major unit to close valve blade.
malfunction
Check for obstacles under retaining clip. Depress retaining clip several times
to check operation. Remove cassette. Flush knob and valve blade in partial
open position. Close valve blade by moving knob clockwise.

CAUTION: If valve blade is open during cassette removal, severe
damage to system can occur. Never force insertion or removal of the
cassette tank.

Spray light film of silicone on blade.

Contact your original Motorhome Dealer.

186
