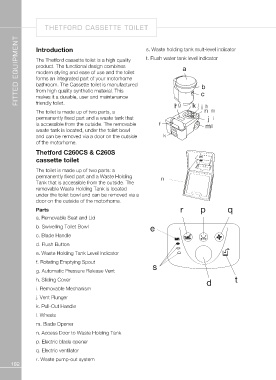

Page 195 - 2017-Swift-Group-Motorhomes-Handbook-web

THETFORD CASSETTE TOILET

FITTED EQUIPMENT Introduction s. Waste holding tank mult-level indicator
t. Flush water tank level indicator
The Thetford cassette toilet is a high quality
product. The functional design combines g j hm
modern styling and ease of use and the toilet i
forms an integrated part of your motorhome f l
bathroom. The Cassette toilet is manufactured k
from high quality synthetic material. This
makes it a durable, user and maintenance
friendly toilet.

The toilet is made up of two parts, a
permanently fixed part and a waste tank that
is accessible from the outside. The removable
waste tank is located, under the toilet bowl
and can be removed via a door on the outside
of the motorhome.

Thetford C260CS & C260S
cassette toilet

The toilet is made up of two parts: a n
permanently fixed part and a Waste Holding
Tank that is accessible from the outside. The
removable Waste Holding Tank is located
under the toilet bowl and can be removed via a
door on the outside of the motorhome.

Parts

a. Removable Seat and Lid

b. Swivelling Toilet Bowl

c. Blade Handle

d. Flush Button

e. Waste Holding Tank Level Indicator
f. Rotating Emptying Spout
g. Automatic Pressure Release Vent
h. Sliding Cover
i. Removable Mechanism
j. Vent Plunger
k. Pull-Out Handle
l. Wheels
m. Blade Opener
n. Access Door to Waste Holding Tank
p. Electric blade opener
q. Electric ventilator
r. Waste pump-out system
182
