FITTED EQUIPMENTROOFLIGHTS

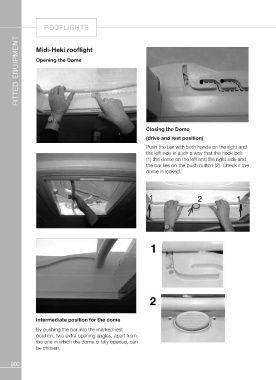

Midi-Heki rooflight

Opening the Dome

Closing the Dome
(drive and rest position)
Push the bar with both hands on the right and
the left side in such a way that the hook bolt
(1) the dome on the left and the right side and
the bar lies on the push button (2). Check if the
dome is locked.

Intermediate position for the dome
By pushing the bar into the marked rest
position, two extra opening angles, apart from
the one in which the dome is fully opened, can
be chosen.
200
