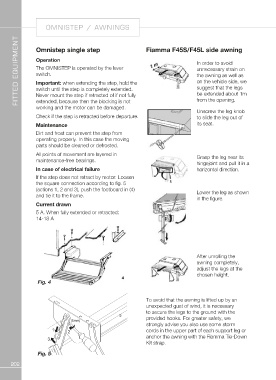

Page 215 - 2017-Swift-Group-Motorhomes-Handbook-web

OMNISTEP / AWNINGS

FITTED EQUIPMENT Omnistep single step Fiamma F45S/F45L side awning

Operation In order to avoid
unnecessary strain on
The OMNISTEP is operated by the lever the awning as well as
switch. on the vehicle side, we
suggest that the legs
Important: when extending the step, hold the be extended about 1m
switch until the step is completely extended. from the opening.
Never mount the step if retracted of if not fully
extended, because then the blocking is not U nscrew the leg knob
working and the motor can be damaged. to slide the leg out of
its seat.
Check if the step is retracted before departure.
Grasp the leg near its
Maintenance hingejoint and pull it in a
horizontal direction.
Dirt and frost can prevent the step from
operating properly. In this case the moving Lower the leg as shown
parts should be cleaned or defrosted. in the figure.

All points of movement are layered in
maintenance-free bearings.

In case of electrical failure

If the step does not retract by motor: Loosen
the square connection according to fig. 5
(actions 1, 2 and 3), push the footboard in (4)
and tie it to the frame.

Current drawn

5 A. When fully extended or retracted:
14-18 A

Fig. 4 After unrolling the
awning completely,
Fig. 5 adjust the legs at the
202 chosen height.

To avoid that the awning is lifted up by an
unexpected gust of wind, it is necessary
to secure the legs to the ground with the
provided hooks. For greater safety, we
strongly advise you also use some storm
cords in the upper part of each support leg or
anchor the awning with the Fiamma Tie-Down
Kit strap.
