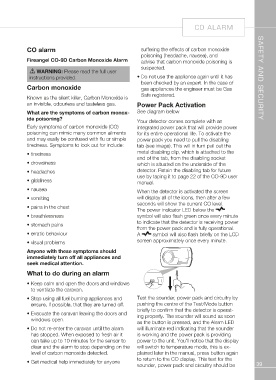

Page 52 - 2017-Swift-Group-Motorhomes-Handbook-web

CO ALARM
CO alarm
Fireangel CO-9D Carbon Monoxide Alarm
! WARNING: Please read the full user
instructions provided.
Carbon monoxide
Known as the silent killer, Carbon Monoxide is
an invisible, odourless and tasteless gas.
What are the symptoms of carbon monox-
ide poisoning?
Early symptoms of carbon monoxide (CO)
poisoning can mimic many common ailments
and may easily be confused with flu or simple
tiredness. Symptoms to look out for include:
• tiredness
• drowsiness
• headaches
• giddiness
• nausea
• vomiting
• pains in the chest
• breathlessness
• stomach pains
• erratic behaviour
• visual problems
Anyone with these symptoms should
immediately turn off all appliances and
seek medical attention.
What to do during an alarm
• Keep calm and open the doors and windows
to ventilate the caravan.
• S top using all fuel burning appliances and
ensure, if possible, that they are turned off.
• E vacuate the caravan leaving the doors and
windows open.
• D o not re-enter the caravan until the alarm
has stopped. When exposed to fresh air it
can take up to 10 minutes for the sensor to
clear and the alarm to stop depending on the
level of carbon monoxide detected.
• Get medical help immediately for anyone
suffering the effects of carbon monoxide SAFETY AND SECURITY
poisoning (headache, nausea), and
advise that carbon monoxide poisoning is 39
suspected.
• D o not use the appliance again until it has
been checked by an expert. In the case of
gas appliances the engineer must be Gas
Safe registered.
Power Pack Activation
See diagram below
Your detector comes complete with an
integrated power pack that will provide power
for its entire operational life. To activate the
power pack you need to pull the disabling
tab (see image). This will in turn pull out the
metal disabling clip, which is attached to the
end of the tab, from the disabling socket
which is situated on the underside of the
detector. Retain the disabling tab for future
use by taping it to page 22 of the CO-9D user
manual.
When the detector is activated the screen
will display all of the icons, then after a few
seconds will show the current CO level.
The power indicator LED below the
symbol will also flash green once every minute
to indicate that the detector is receiving power
from the power pack and is fully operational.
A symbol will also flash briefly on the LCD
screen approximately once every minute.
Test the sounder, power pack and circuitry by
pushing the centre of the Test/Mode button
briefly to confirm that the detector is operat-
ing properly. The sounder will sound as soon
as the button is pressed, and the Alarm LED
will illuminate red indicating that the sounder
is working and the power pack is providing
power to the unit. You'll notice that the display
will switch to temperature mode, this is ex-
plained later in the manual, press button again
to return to the CO display. This test for the
sounder, power pack and circuitry should be
