SWIFT COMMAND POWER CONTROL SYSTEM

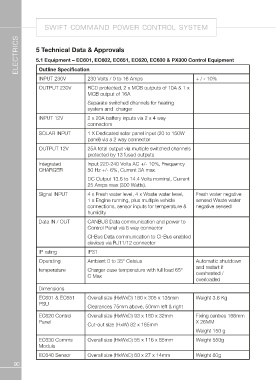

ELECTRICS 5 Technical Data & Approvals

5.1 Equipment – EC601, EC602, EC651, EC620, EC630 & PX300 Control Equipment

Outline Specification

INPUT 230V 230 Volts / 0 to 16 Amps + / - 10%

OUTPUT 230V RCD protected, 2 x MCB outputs of 10A & 1 x
MCB output of 16A

Separate switched channels for heating
system and charger

INPUT 12V 2 x 20A battery inputs via 2 x 4 way
connectors

SOLAR INPUT 1 X Dedicated solar panel input (20 to 150W
panel) via a 2 way connector

OUTPUT 12V 25A total output via multiple switched channels
protected by 13 fused outputs

Integrated Input 220-240 Volts AC +/- 10%, Frequency
CHARGER 50 Hz +/- 6%, Current 3A max.

DC Output 13.6 to 14.4 Volts nominal, Current
25 Amps max (300 Watts).

Signal INPUT 4 x Fresh water level, 4 x Waste water level, Fresh water negative
1 x Engine running, plus multiple vehicle sensed Waste water
connections, sensor inputs for temperature & negative sensed
humidity

Data IN / OUT CANBUS Data communication and power to
Control Panel via 6 way connector

CI-Bus Data communication to CI-Bus enabled
devices via RJ11/12 connector

IP rating IP31

Operating Ambient 0 to 35° Celsius Automatic shutdown
temperature and restart if
Charger case temperature with full load 65° overheated /
C Max overloaded

Dimensions

EC601 & EC651 Overall size (HxWxD) 180 x 305 x 135mm Weight 3.8 Kg
PSU Clearances 75mm above, 50mm left & right

EC620 Control Overall size (HxWxD) 93 x 180 x 32mm Fixing centres 166mm
Panel Cut-out size (HxW) 82 x 165mm X 26MM

Weight 150 g

EC630 Comms Overall size (HxWxD) 55 x 116 x 85mm Weight 550g
Module

EC640 Sensor Overall size (HxWxD) 60 x 27 x 14mm Weight 80g

90
