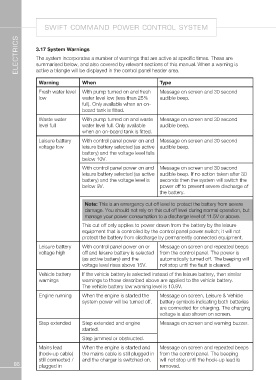

SWIFT COMMAND POWER CONTROL SYSTEM

ELECTRICS 3.17 System Warnings

The system incorporates a number of warnings that are active at specific times. These are
summarised below, and also covered by relevant sections of this manual. When a warning is
active a triangle will be displayed in the control panel header area.

Warning When Type
Fresh water level
low With pump turned on and fresh Message on screen and 30 second
water level low (less than 25% audible beep.
Waste water full). Only available when an on-
level full board tank is fitted.

Leisure battery With pump turned on and waste Message on screen and 30 second
voltage low water level full. Only available audible beep.
when an on-board tank is fitted.

With control panel power on and Message on screen and 30 second
leisure battery selected (as active audible beep.
battery) and the voltage level falls
below 10V.

With control panel power on and Message on screen and 30 second
leisure battery selected (as active audible beep. If no action taken after 30
battery) and the voltage level is seconds then the system will switch the
below 9V. power off to prevent severe discharge of
the battery.

Note: This is an emergency cut off level to protect the battery from severe
damage. You should not rely on this cut off level during normal operation, but
manage your power consumption to a discharge level of 11.5V or above.

This cut off only applies to power drawn from the battery by the leisure
equipment that is controlled by the control panel power switch; it will not
protect the battery from discharge by permanently connected equipment.

Leisure battery With control panel power on or Message on screen and repeated beeps
voltage high off and leisure battery is selected from the control panel. The power is
(as active battery) and the automatically turned off. The beeping will
voltage level rises above 15V. not stop until the fault is cleared.

Vehicle battery If the vehicle battery is selected instead of the leisure battery, then similar
warnings warnings to those described above are applied to the vehicle battery.
The vehicle battery low warning level is 10.9V.

Engine running When the engine is started the Message on screen, Leisure & Vehicle
system power will be turned off. battery symbols indicating both batteries
are connected for charging. The charging
voltage is also shown on screen.

Step extended Step extended and engine Message on screen and warning buzzer.
started.

Step jammed or obstructed.

Mains lead When the engine is started and Message on screen and repeated beeps

(hook-up cable) the mains cable is still plugged in from the control panel. The beeping

still connected / and the charger is switched on. will not stop until the hook-up lead is
86 plugged in
removed.
