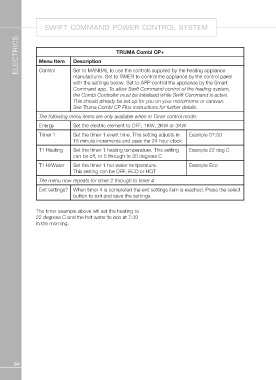

SWIFT COMMAND POWER CONTROL SYSTEM

ELECTRICS TRUMA Combi CP+

Menu Item Description

Control Set to MANUAL to use the controls supplied by the heating appliance
manufacturer. Set to TIMER to control the appliance by the control panel
with the settings below. Set to APP control the appliance by the Smart
Command app. To allow Swift Command control of the heating system,
the Combi Controller must be initialised while Swift Command is active.

This should already be set up for you on your motorhome or caravan.

See Truma Combi CP Plus instructions for further details.

The following menu items are only available when in Timer control mode.

Energy Set the electric element to OFF, 1KW, 2KW or 3KW

Timer 1 Set the timer 1 event time. This setting adjusts in Example 07:30
15 minute increments and uses the 24 hour clock

T1 Heating Set the timer 1 heating temperature. This setting Example 22 deg C
can be off, or 5 through to 30 degrees C

T1 H/Water Set the timer 1 hot water temperature. Example Eco
This setting can be OFF, ECO or HOT

The menu now repeats for timer 2 through to timer 4

Exit settings? When timer 4 is completed the exit settings item is reached. Press the select
button to exit and save the settings.

The timer example above will set the heating to
22 degrees C and the hot water to eco at 7:30
in the morning.
