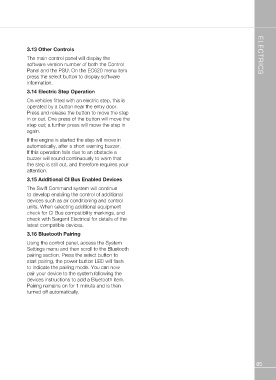

Page 98 - 2017-Swift-Group-Motorhomes-Handbook-web

3.13 Other Controls ELECTRICS

The main control panel will display the
software version number of both the Control
Panel and the PSU. On the EC620 menu item
press the select button to display software
information.

3.14 Electric Step Operation

On vehicles fitted with an electric step, this is
operated by a button near the entry door.
Press and release the button to move the step
in or out. One press of the button will move the
step out; a further press will move the step in
again.

If the engine is started the step will move in
automatically, after a short warning buzzer.
If this operation fails due to an obstacle a
buzzer will sound continuously to warn that
the step is still out, and therefore requires your
attention.

3.15 Additional CI Bus Enabled Devices

The Swift Command system will continue
to develop enabling the control of additional
devices such as air conditioning and control
units. When selecting additional equipment
check for CI Bus compatibility markings, and
check with Sargent Electrical for details of the
latest compatible devices.

3.16 Bluetooth Pairing

Using the control panel, access the System
Settings menu and then scroll to the Bluetooth
pairing section. Press the select button to
start pairing, the power button LED will flash
to indicate the pairing mode. You can now
pair your device to the system following the
devices instructions to add a Bluetooth item.
Pairing remains on for 1 minute and is then
turned off automatically.

85
