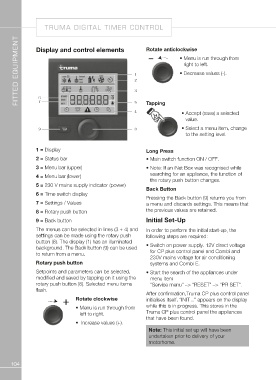

TRUMA DIGITAL TIMER CONTROL

FITTED EQUIPMENT Display and control elements Rotate anticlockwise

• M enu is run through from
right to left.

• Decrease values (-).

Tapping

• Accept (save) a selected
value.

• Select a menu item, change
to the setting level.

1 = Display Long Press

2 = Status bar • Main switch function ON / OFF.

3 = Menu bar (upper) • N ote: If an iNet Box was recognised while
searching for an appliance, the function of
4 = Menu bar (lower) the rotary push button changes.

5 = 230 V mains supply indicator (power) Back Button

6 = Time switch display Pressing the Back button (9) returns you from
a menu and discards settings. This means that
7 = Settings / Values the previous values are retained.

8 = Rotary push button Initial Set-Up

9 = Back button In order to perform the initial start-up, the
following steps are required:
The menus can be selected in lines (3 + 4) and
settings can be made using the rotary push • Switch on power supply. 12V direct voltage
button (8). The display (1) has an illuminated for CP plus control panel and Combi and
background. The Back button (9) can be used 230V mains voltage for air conditioning
to return from a menu. systems and Combi E.

Rotary push button • S tart the search of the appliances under
menu item
Setpoints and parameters can be selected, “Service menu” –> “RESET” –> “PR SET”.
modified and saved by tapping on it using the
rotary push button (8). Selected menu items After confirmation,Truma CP plus control panel
flash. initialises itself. “INIT ..” appears on the display
while this is in progress. This stores in the
Rotate clockwise Truma CP plus control panel the appliances
that have been found.
• M enu is run through from
left to right. Note: This initial set up will have been
undertaken prior to delivery of your
• Increase values (+). motorhome.
